如何使用SDR+inspectrum逆向分析无线遥控信号

0×00 前言

前段时间在《HackRF入门：家用无线门铃信号重放》 一文中通过HackRF录制、重放了无线遥控信号，不过一直没来得及对信号进行分析，刚好在国外网站看到有大牛对遥控信号进行了分析(详见refer部分)。在这里便按照国外大牛分析无线遥控信号的方法来依葫芦画瓢。

*本文仅分享信号分析方式，因信号调制编码方式有所不同，如数据分析有出错，希望大家不要打我=￣ω￣= 摸摸大

0×01 环境搭建

Mac可使用port(/www.macports.org) 或者brew(brew.sh)安装GnuRadio依赖套件:

sudoportinstallgnuradio

sudoportinstallhackrf

sudoportinstallrtl-sdr

sudoportinstallgr-osmosdrgqrx

sudoportinstallhackrf

完成上面的工作后便能在Mac环境中使用电视棒、HackRF、GnuRadio了。

0×02 Recording 信号录制

录制遥控信号的方式有很多，如电视棒+SDR-sharp录制wav音频格式数据、通过HackRF命令终端录制RAW格式数据，本文使用GNURadio+SDR硬件(rtl-sdr、HackRF、BladeRF等)来实现这一功能：

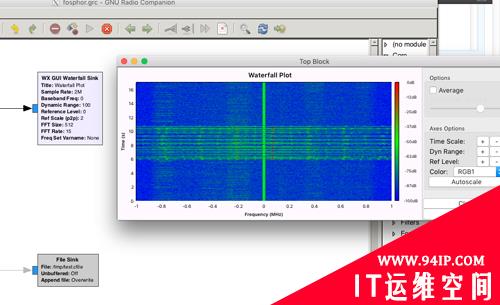

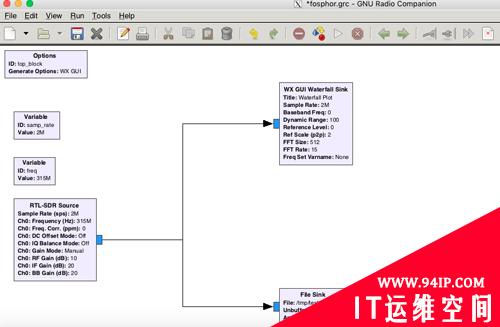

左侧RTL-SDR Source将使用SDR硬件接收315MHz无线信号,采样率为2M，右上WX GUI Waterfall sink将接收到的信号通过瀑布图在PC上显示捕获的无线信号，右下角File Sink将捕获到的无线数据包储存到/tmp/test.cfile文件中。执行流图并摁下遥控可看到如下效果图：

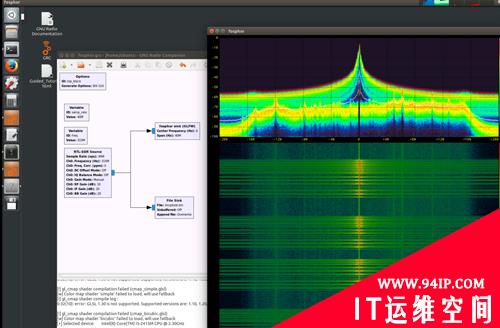

个人比较喜欢使用gr-fosphor的瀑布图模块来对捕获到的信号在瀑布图上进行展示：

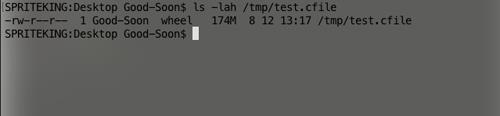

结束GnuRadio流图后，查看/tmp目录下的test.cfile：

0×03 Analysis 信号分析

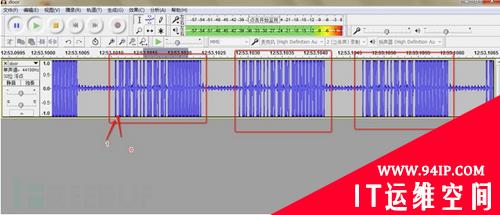

分析信号可使用音频处理软件Audacity：

不过这种方式需要肉眼将波形转化成0跟1，看起来比较容易眼花。maybe，只有老司机才能很快很准确地用这种方式完成分析任务。

3.1 安装inspectrum

在这篇文章中我们将通过inspectrum(https://github.com/miek/inspectrum)这个工具来分析信号，配合Python将信号转成二进制数据。

sudoportinstallfftw-3-singlecmakepkgconfigqt5

gitclonehttps://github.com/miek/inspectrum.git

mkdirbuild

cdbuild

cmake..

make

sudomakeinstall

inspectrum-h

Usage:inspectrum[options]file

spectrumviewer

Options:

-h,--helpDisplaysthishelp.

-r,--rate<Hz>Setsamplerate.

Arguments:

fileFiletoview.

3.2 数据导入、分析

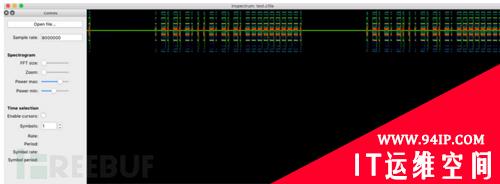

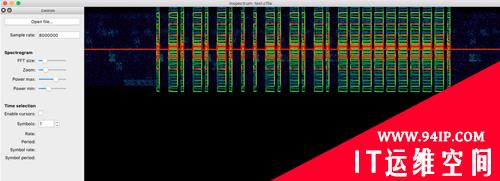

inspectrum/tmp/test.cfile

通过左侧Spectrogram参数的调节、缩放工具，我们可以实现波形图的放大缩小，颜色深浅调节：

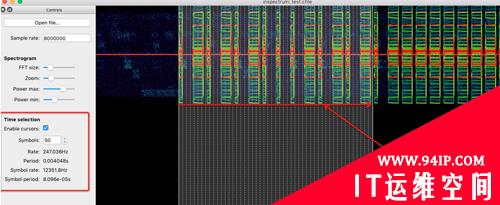

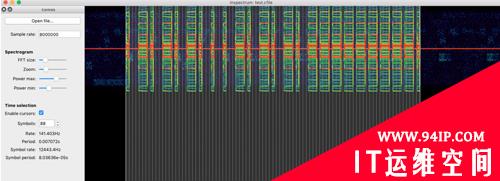

下方Time selection可对波形进行划分：

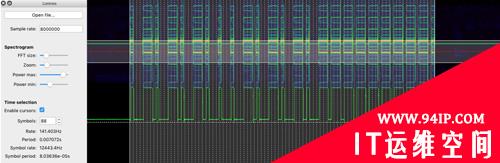

对Symbols进行递增，直至囊括一个信号波形区域：

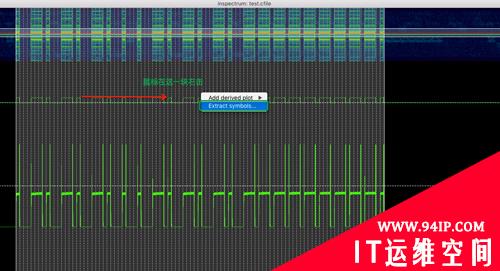

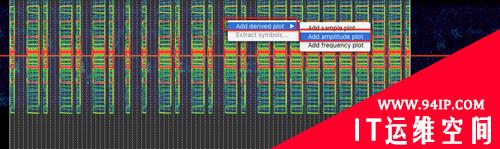

右键—>Add derved plot—>Add amplitude plot：

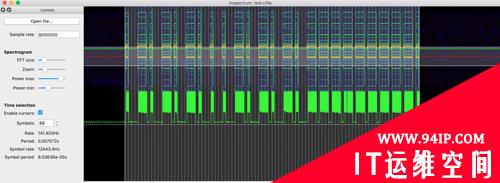

效果如下：

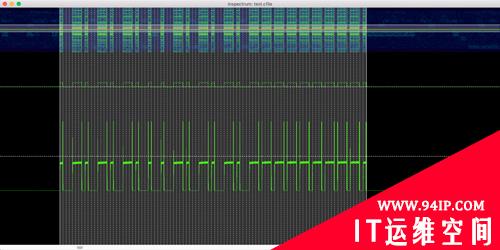

对部分参数进行微调：

导出波形数据：

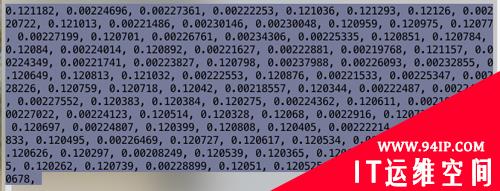

此时在终端获得波形宽度数据：

3.3 解码

接下来我们可通过Python将这些数据转成0、1,，test.py代码如下：(if i > x x的值根据自身实际情况决定，建议取最大值跟最小值区间的自然数)。

s=''a=[0.121182,0.00224696,0.00227361,0.00222253,0.121036,0.121293,0.12126,0.00220722,0.121013,0.00221486,0.00230146,0.00230048,0.120959,0.120975,0.12077,0.00227199,0.120701,0.00226761,0.00234306,0.00225335,0.120851,0.120784,0.12084,0.00224014,0.120892,0.00221627,0.00222881,0.00219768,0.121157,0.00224349,0.00221741,0.00223827,0.120798,0.00237988,0.00226093,0.00232855,0.120649,0.120813,0.121032,0.00222553,0.120876,0.00221533,0.00225347,0.00228226,0.120759,0.120718,0.12042,0.00218557,0.120344,0.00222487,0.00224753,0.00227552,0.120383,0.120384,0.120275,0.00224362,0.120611,0.00219556,0.00227022,0.00224123,0.120514,0.120328,0.12068,0.0022916,0.120735,0.12043,0.120697,0.00224807,0.120399,0.120808,0.120405,0.00222214,0.120512,0.120833,0.120495,0.00226469,0.120727,0.120617,0.120534,0.00222499,0.120441,0.120626,0.120297,0.00208249,0.120539,0.120365,0.120612,0.00214876,0.120545,0.120262,0.120739,0.00228899,0.12051,0.120525,0.120172,0.00214644,0.120678]foriina:ifi>0.03:s+='1'else:s+='0'

0×04 replay 信号重放

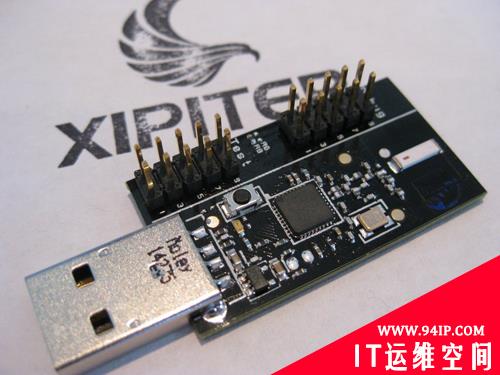

通过上述方式，我们已对SDR捕获到的无线信号进行分析，并把信号文件转换成了二进制数据，接下来可使用GnuRadio对数据进行重放、修改测试，或者使用RFcat+Python实现廉价的重放Hacking。

0×05 refer

https://medium.com/@eoindcoolest/decoding-a-garage-door-opener-with-an-rtl-sdr-5a47292e2bda#.qu46ncrr3

Mike Walters: Reversing digital signals with inspectrum – YouTube

My quickest and easiest method for OOK signal decoding & replication in 2016 – YouTube
